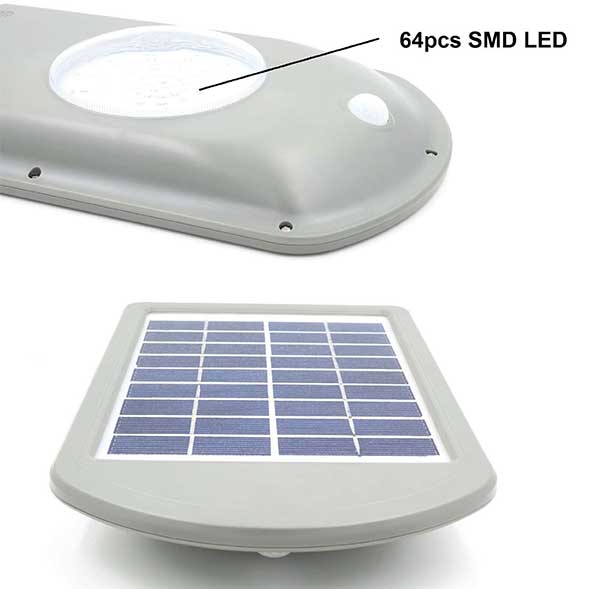

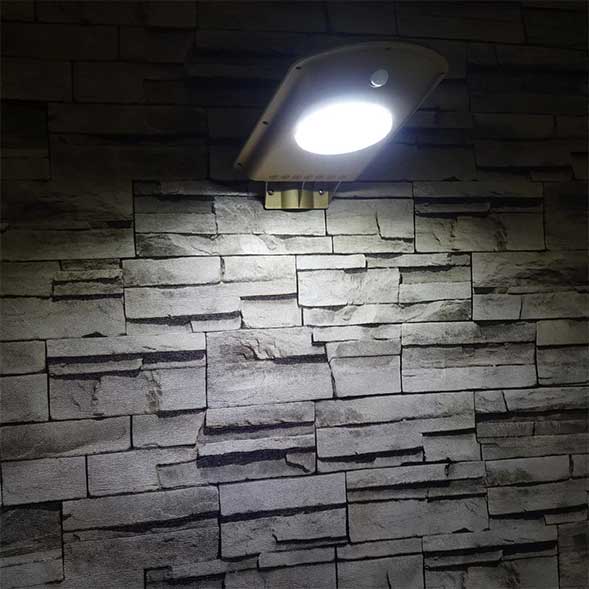

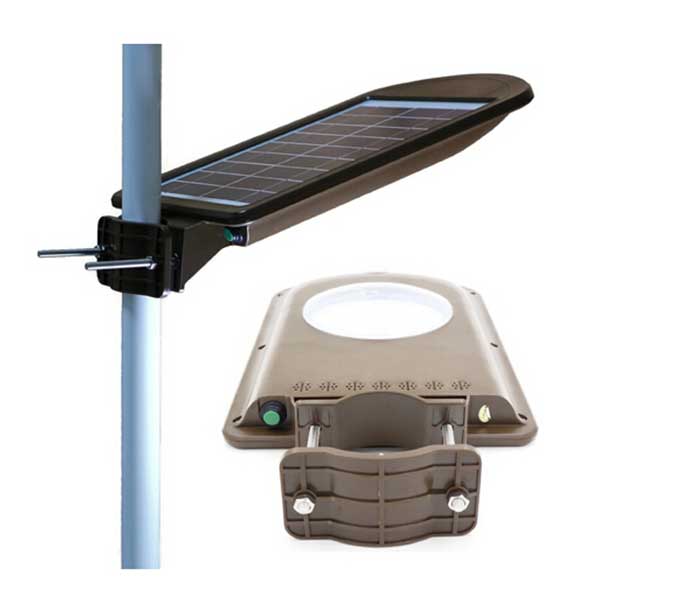

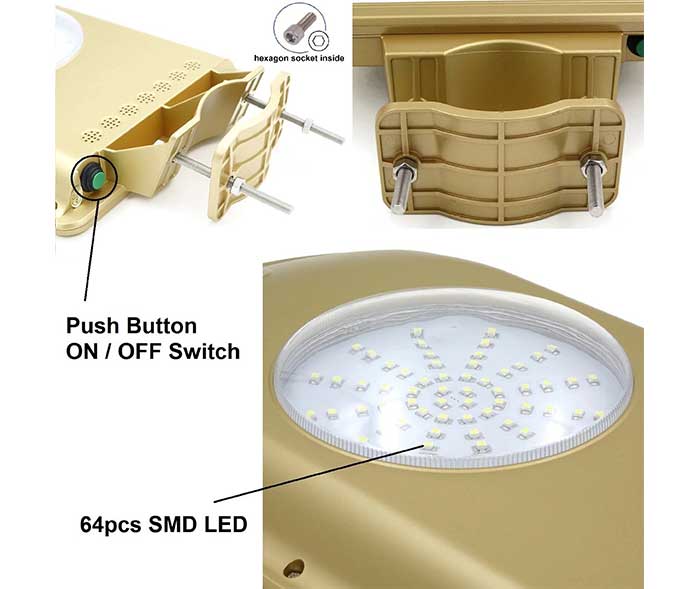

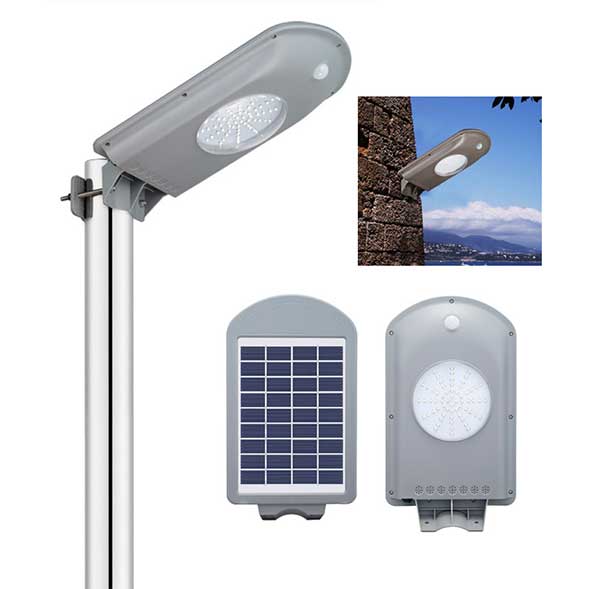

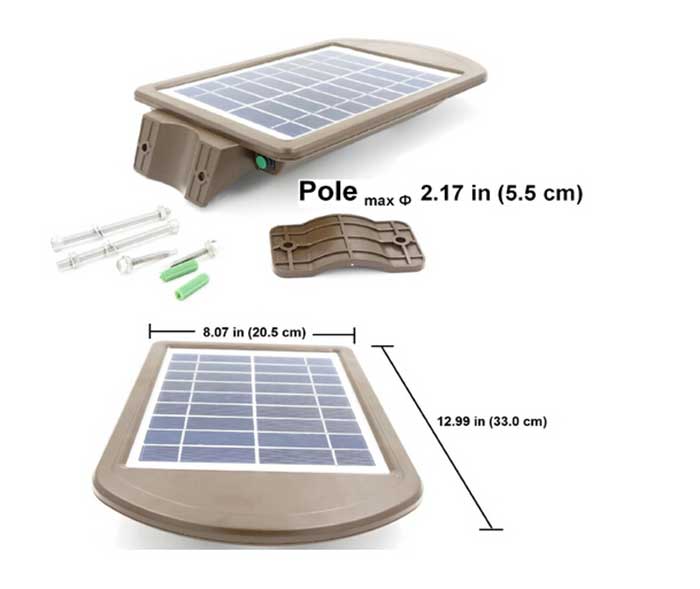

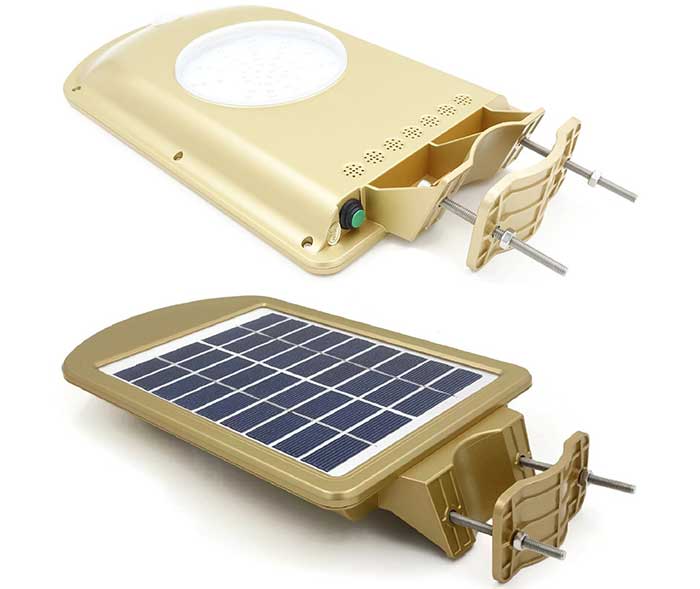

SMGBL-DJ-602
Integrated solar street led light
Specification
Max power:5W 9V Polly Crystalline
Life time : more than 15 years
Type: LiFePO4 4.5AH 6.4V
life time:5~6 years
Max Power: 5W 500lumens <1w = 100lumens >
led chip brand:Epistar
Life time:>50000hours
Viewing Angle: 120°
colour temperature:>50000hours
Life time: Pure/Cool white, 4000-6000K
7-9m,detection angle:140 degree.
Charge time: 6 h under peak sunshine,Normally 8h under sunshine.
LIGHT MODE : Auto ON/OFF, Starts at 2w and with PIR at 5w for 1min.
Working temperature: LifePO4 -20℃-75℃
Lamps material : Plastic case (ABS+PC)
Certificate, Waterproof Glass : CE / ROHS, IP65
Warranty: 1 years

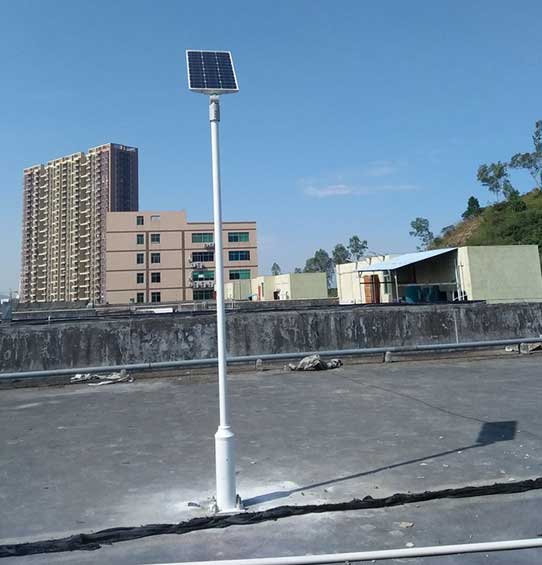

Application
-large.jpg)

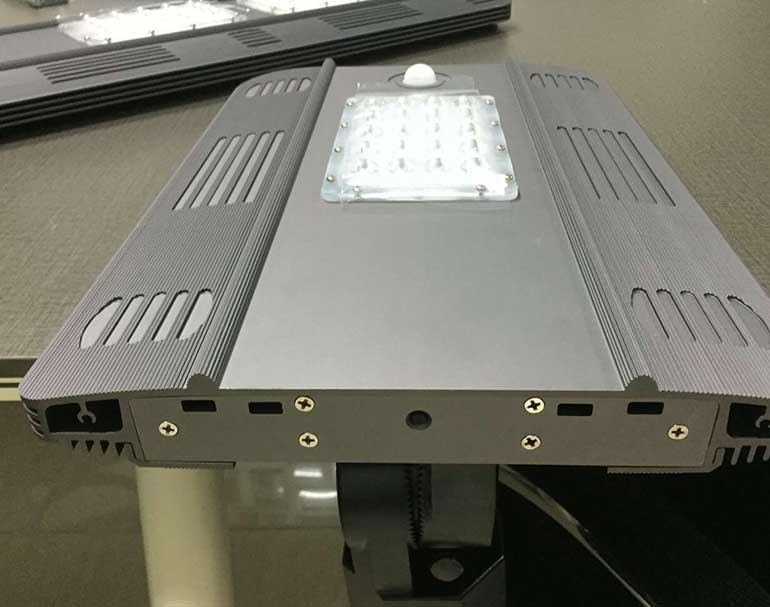

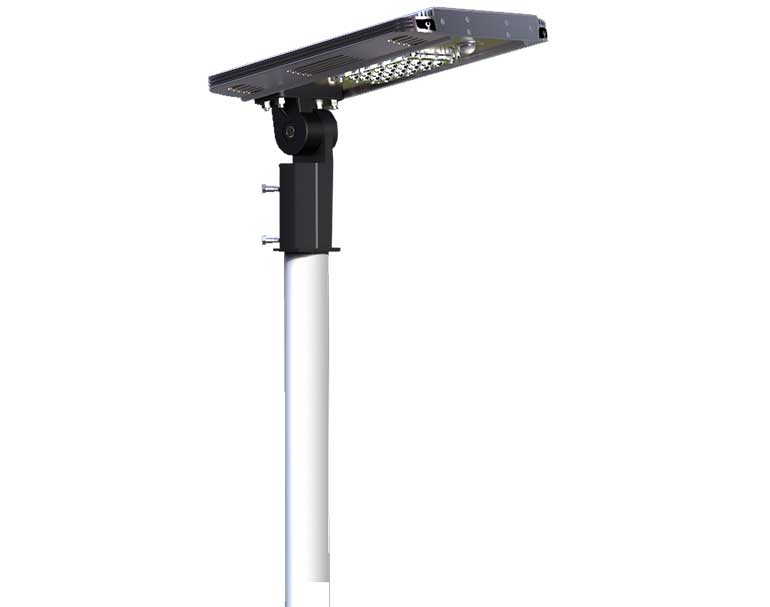

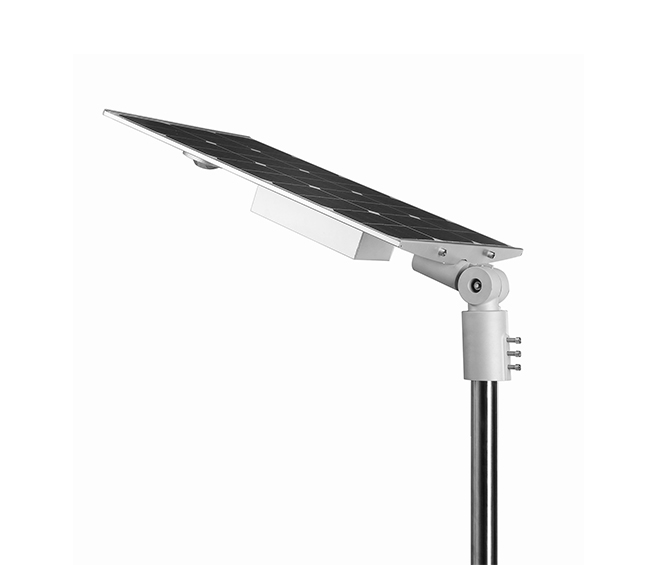

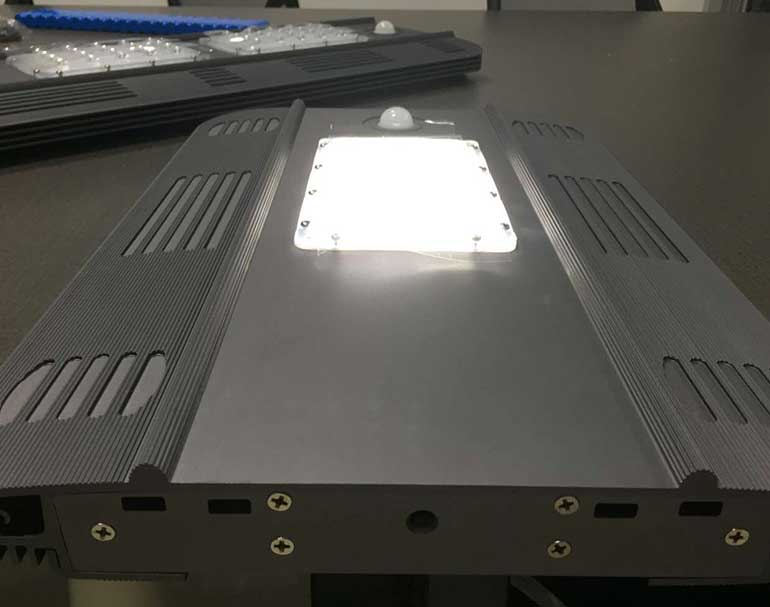

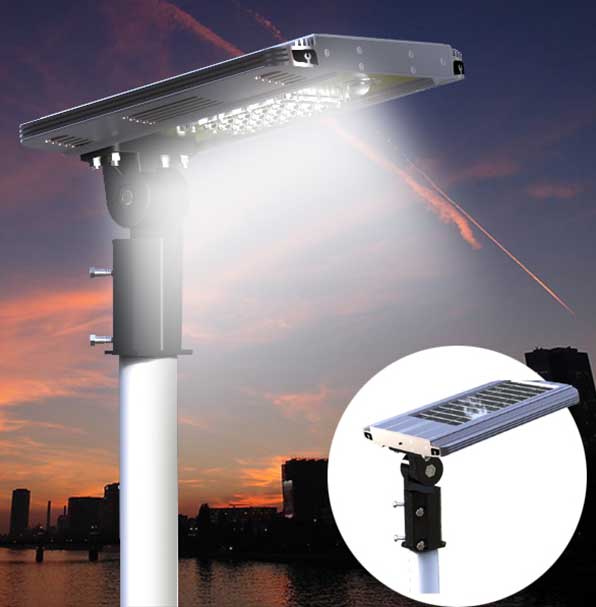

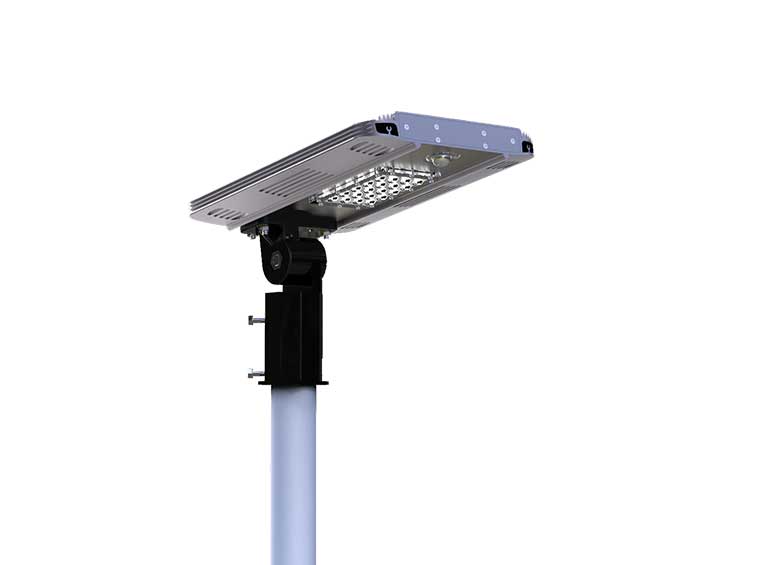

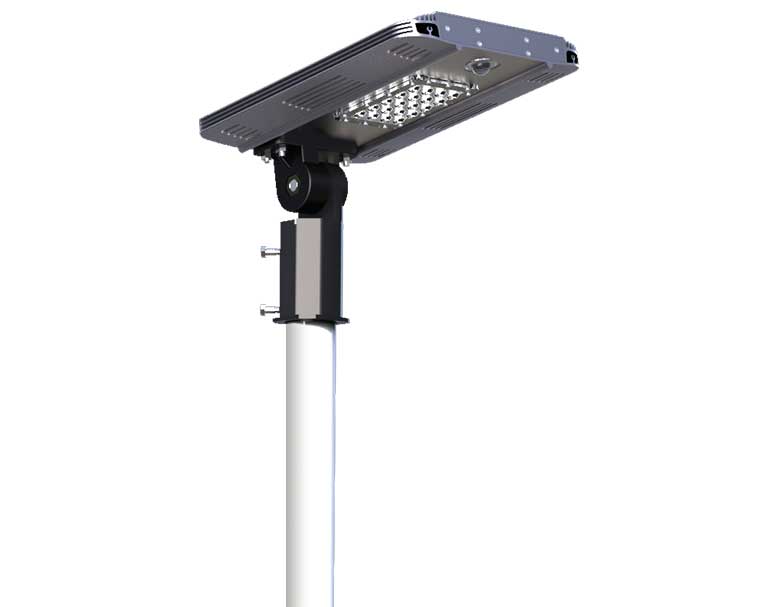

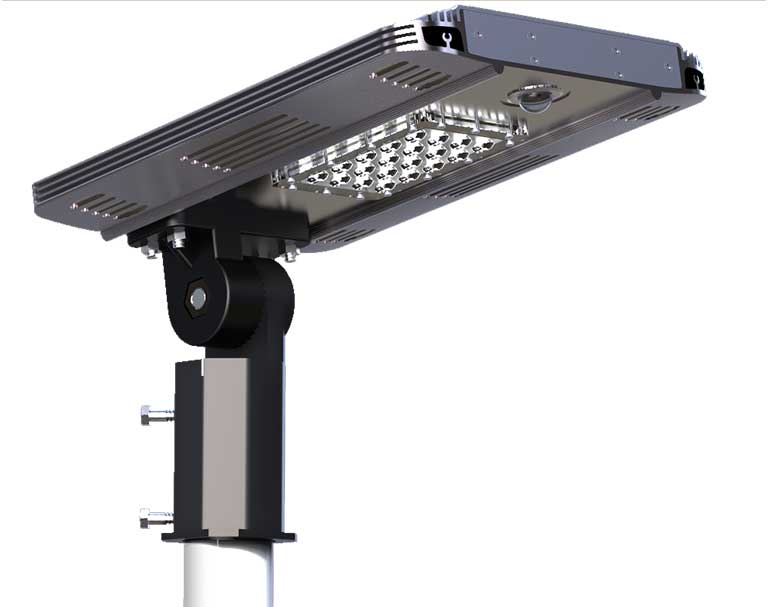

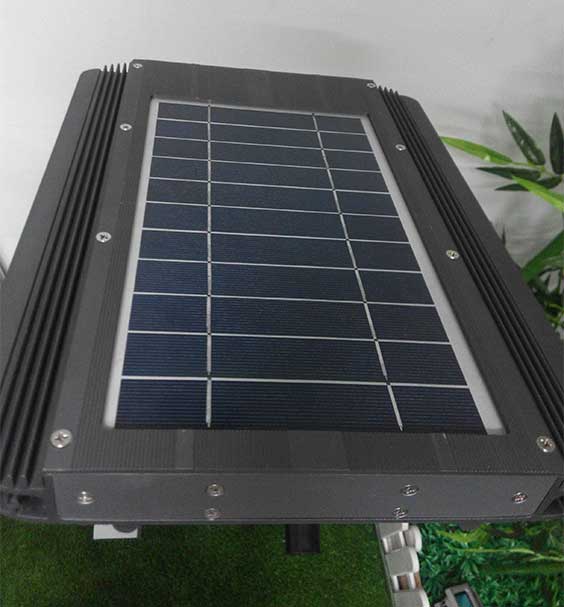

SMGBL-ELS-07
Integrated solar street led light
-large.jpg)
-large.jpg)
Specification
Solar panel : 7W 17% efficiency
LED : 20pcs ,5W, 500lumens (Netural led color : Pure white ) LED life span:+50000hrs
Charging Method : Solar power
Charging time : 6-8hrs
Battery : 13200mah li-ion battery
Material : Aluminum Alloy+PC
IP level : 65
With PIR motion sensor and light sensor
Working Temperature:-25℃ to 65℃
Product size: 276MM*390MM
Light mode: 100% brightness for first 3 hours. Then, 25% till morning with PIR active for 100% brightness for 30 seconds.
Application
-large.jpg)
-large.jpg)

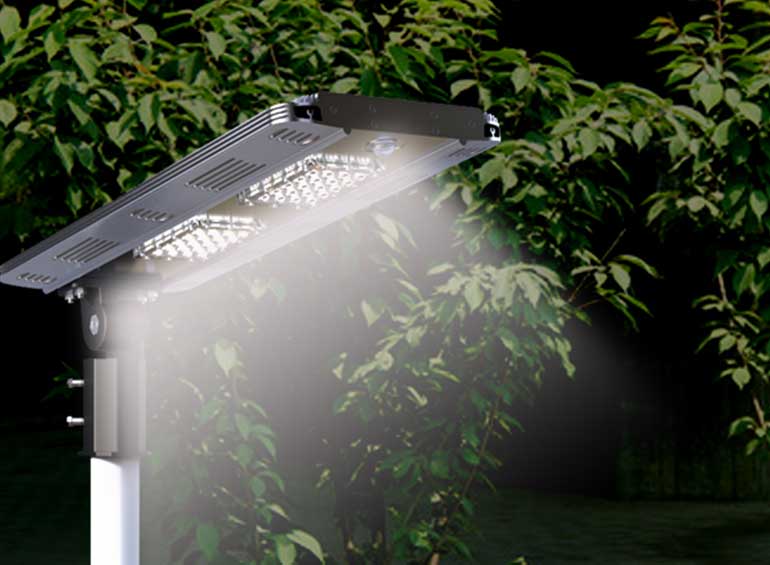

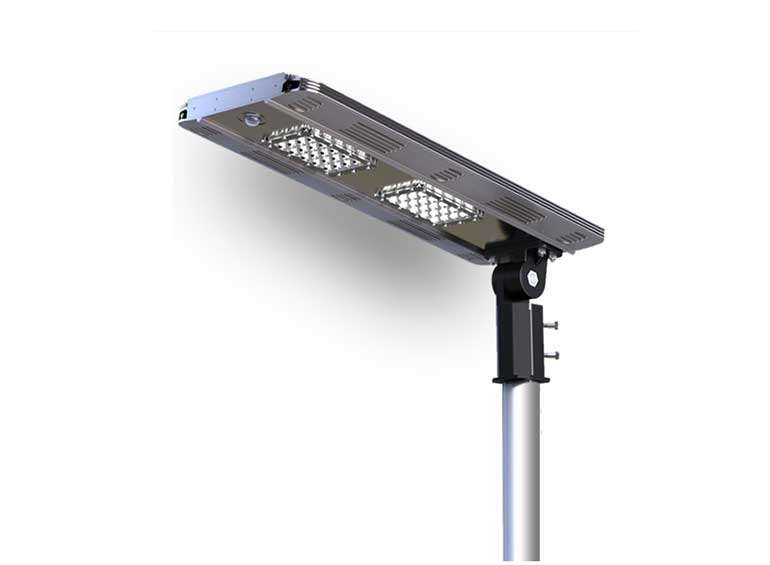

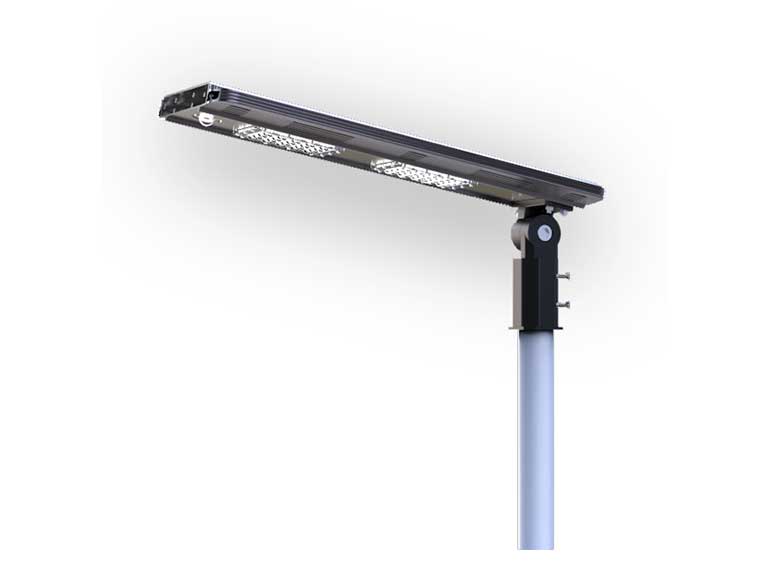

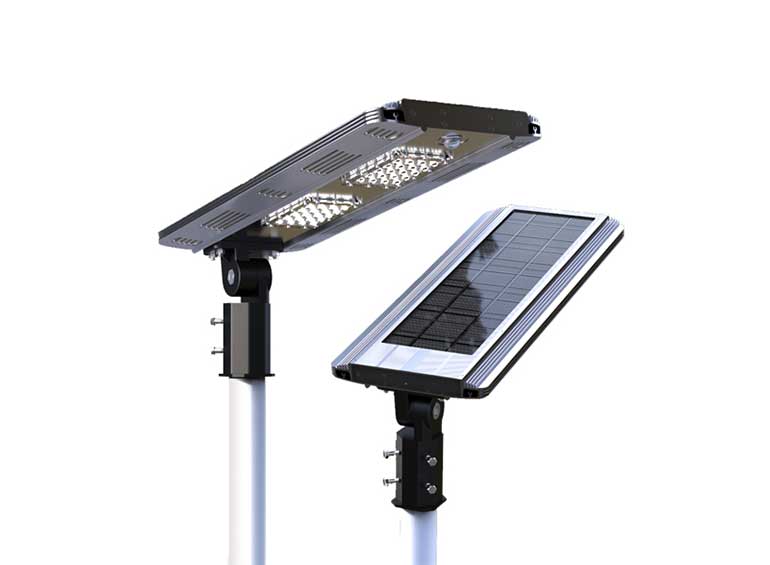

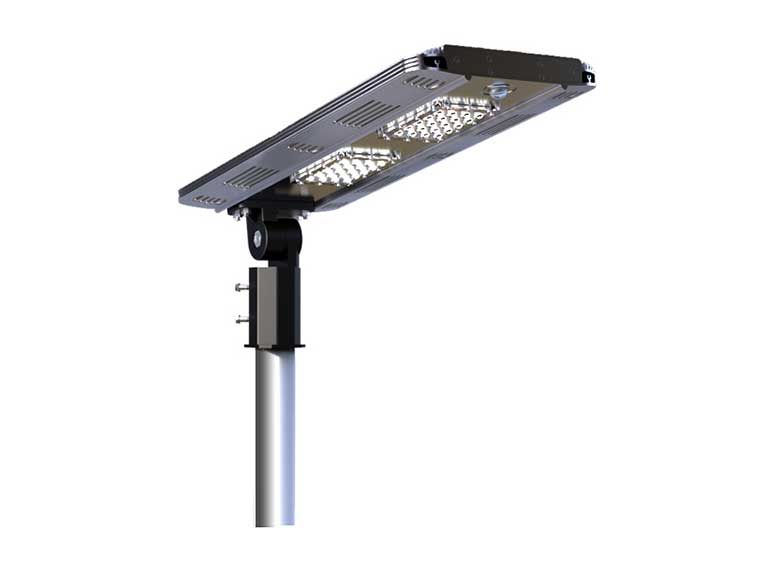

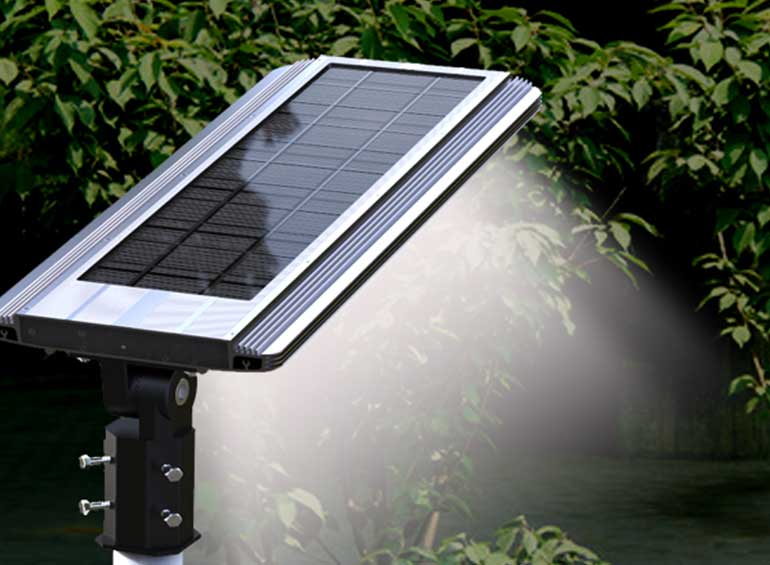

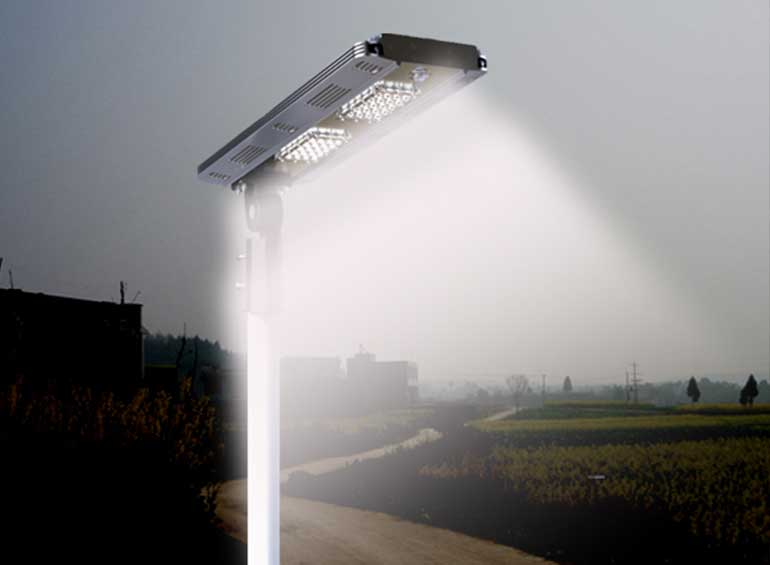

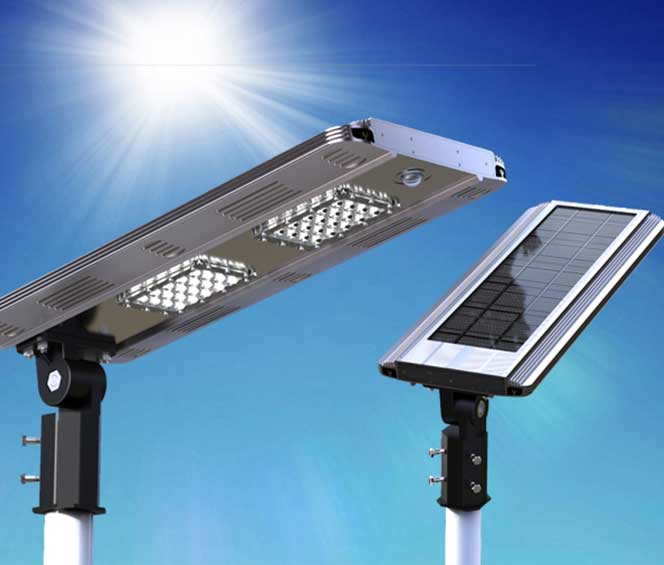

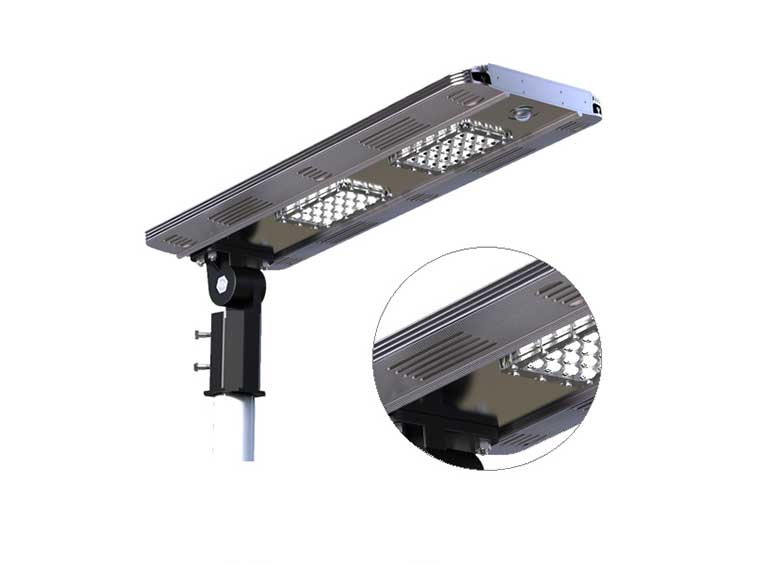

SMGBL-ELS-16
Integrated solar street led light
-large.jpg)
-large.jpg)
-large.jpg)
Specification
Solar panel : 15W 17% efficiency
LED : 40pcs ,12W, 1200lumens (Netural led color : Pure white ) LED life span:+50000hrs
Charging Method : Solar power
Charging time : 6-8hrs
Battery : 26400mah li-ion battery
Material : Aluminum Alloy+PC
IP level : 65
With PIR motion sensor and light sensor
Working Temperature: -25℃ to 65℃
Product size : 276MM*690MM

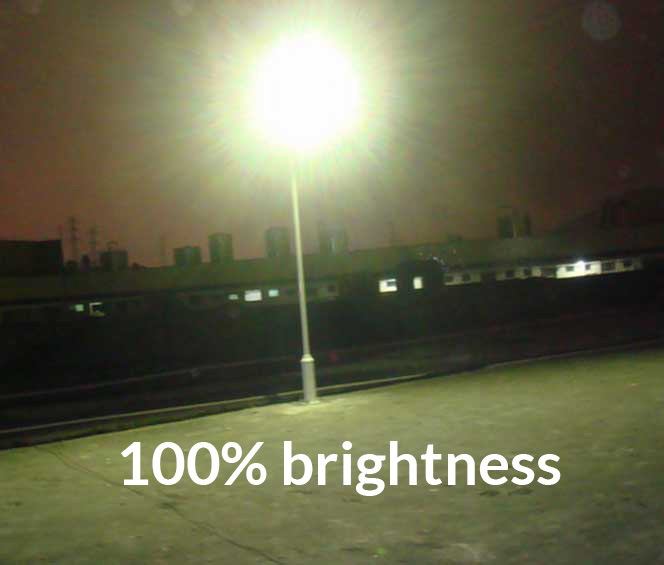

LIGHT MODE : 100% brightness for first 3 hours. Then, 25% till morning with PIR active for 100% brightness for 30 seconds.
Application
-large.jpg)
-large.jpg)

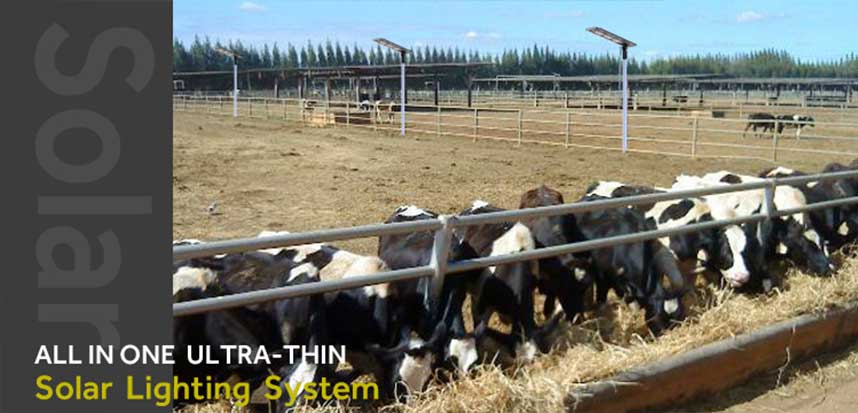

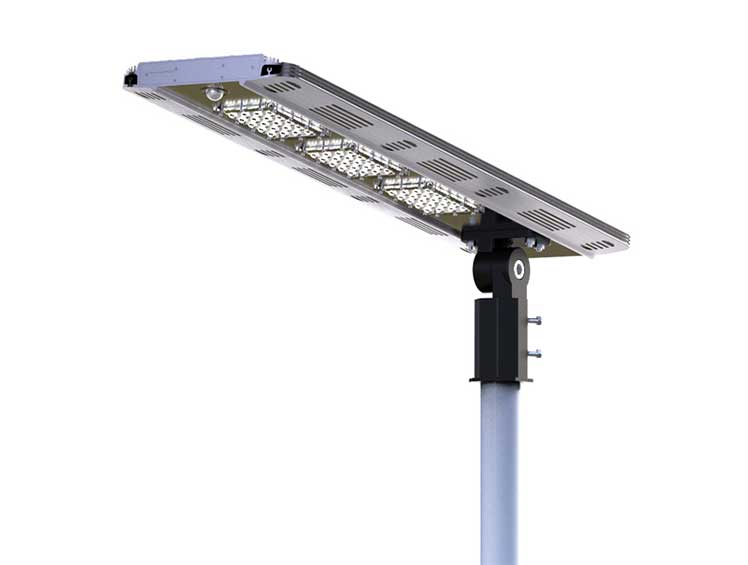

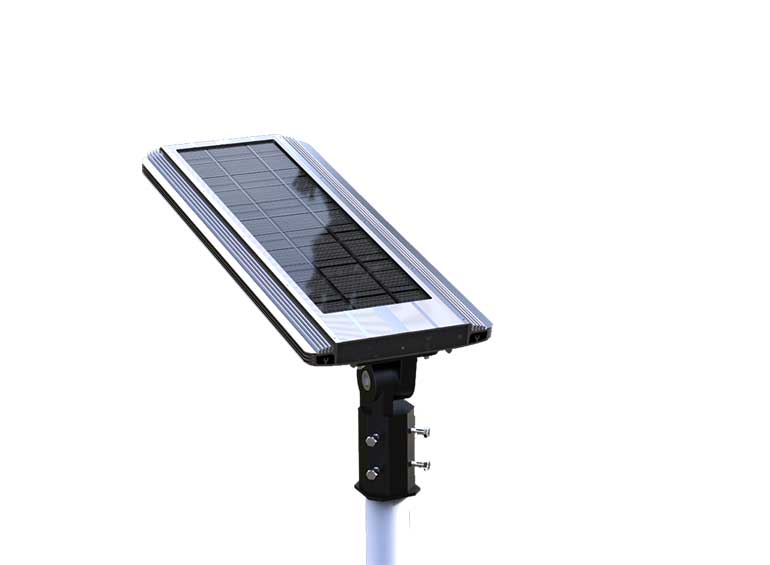

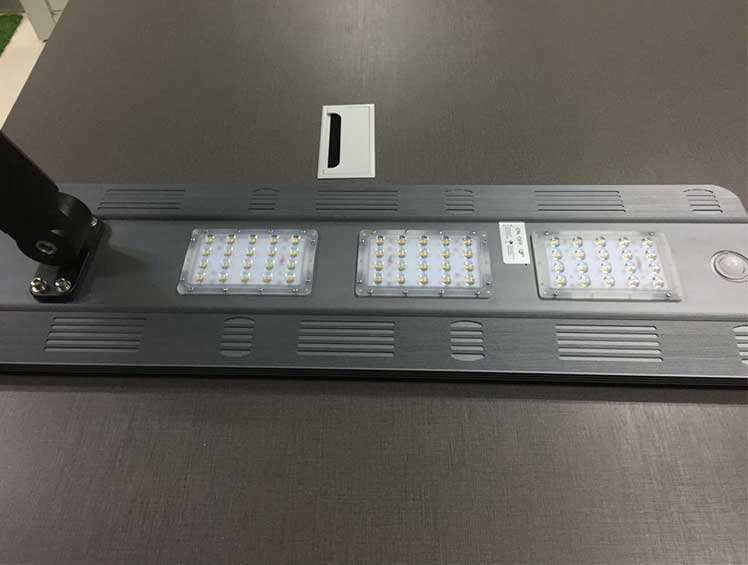

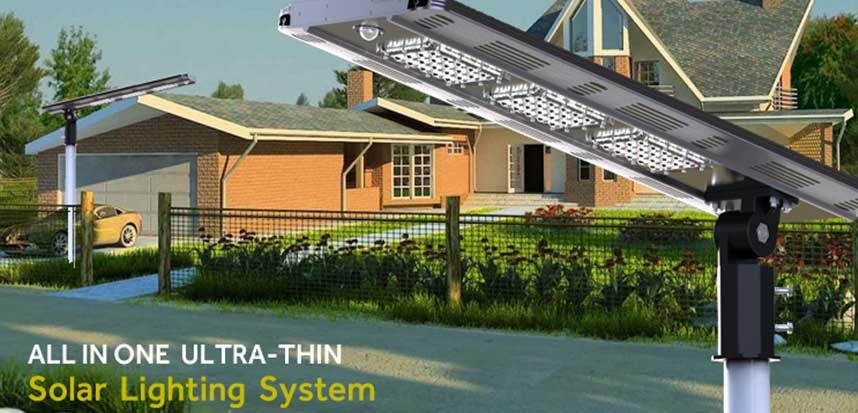

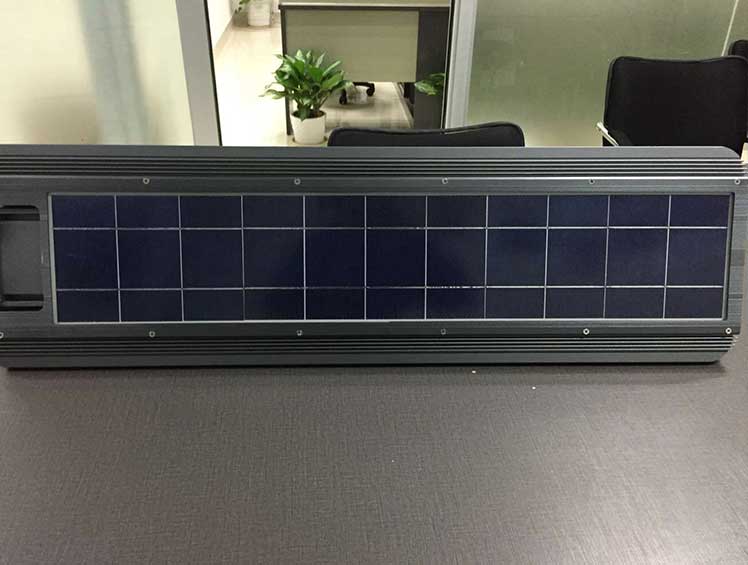

SMGBL-ELS-18
Integrated solar street led light
-large.jpg)
-LARGE.jpg)
Specification
Solar panel : 22W 17% efficiency
LED : 60pcs ,18W, 1800lumens(Netural led color : Pure white ) LED life span:+50000hrs
Charging Method : Solar power
Charging time : 6-8hrs
Battery : 39600 mah li-ion battery
Material : Aluminum Alloy+PC
IP level : 65
With PIR motion sensor and light sensor
Working Temperature:-25℃ to 65℃
Product size: 276MM*940MM
Light mode: 100% brightness for first 3 hours. Then, 25% till morning with PIR active for 100% brightness for 30 seconds.
Application
-large.jpg)
-large.jpg)
-large.jpg)
-large.jpg)

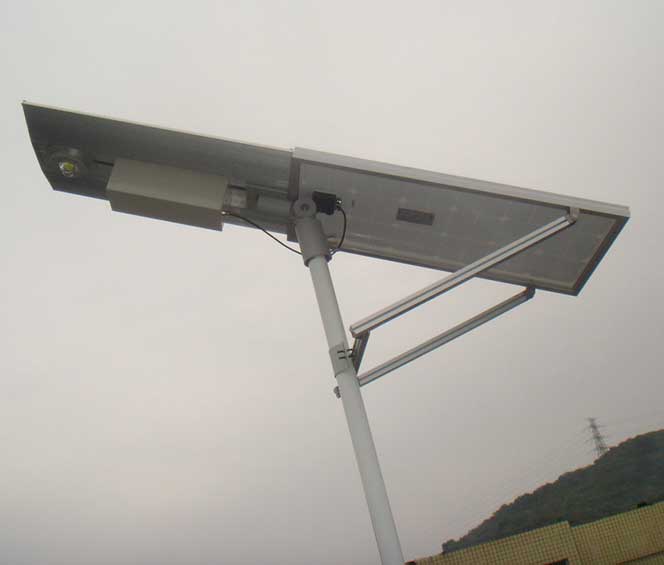

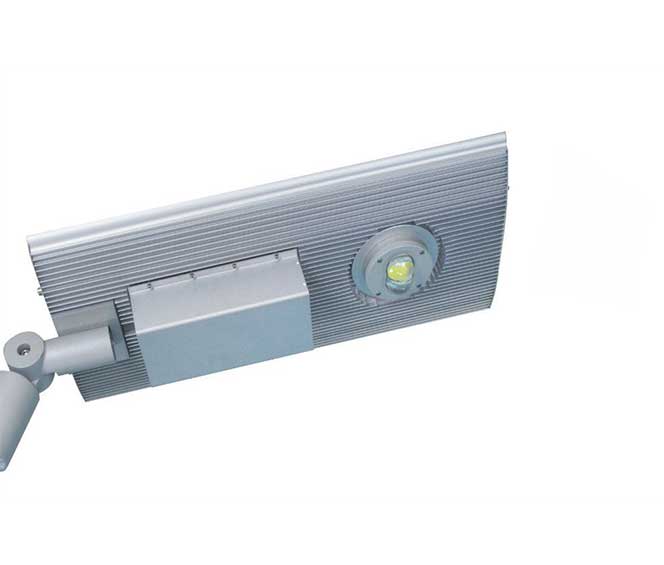

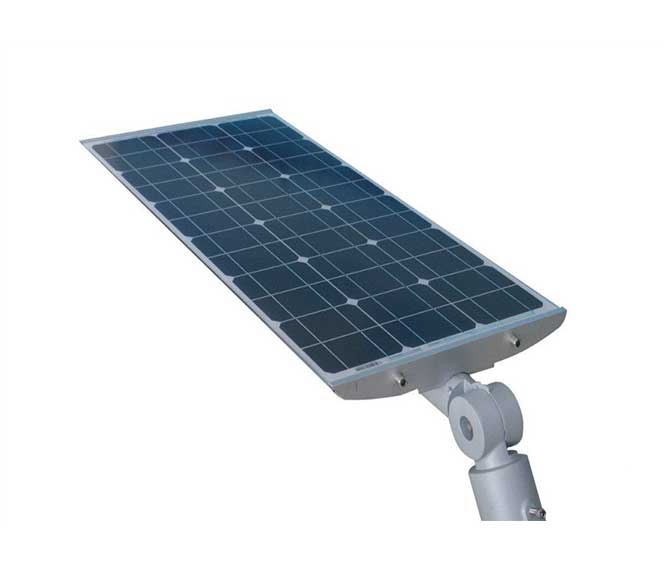

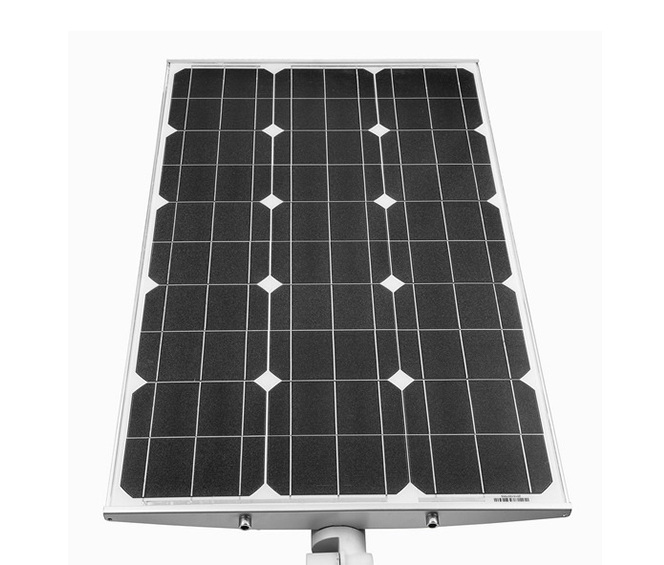

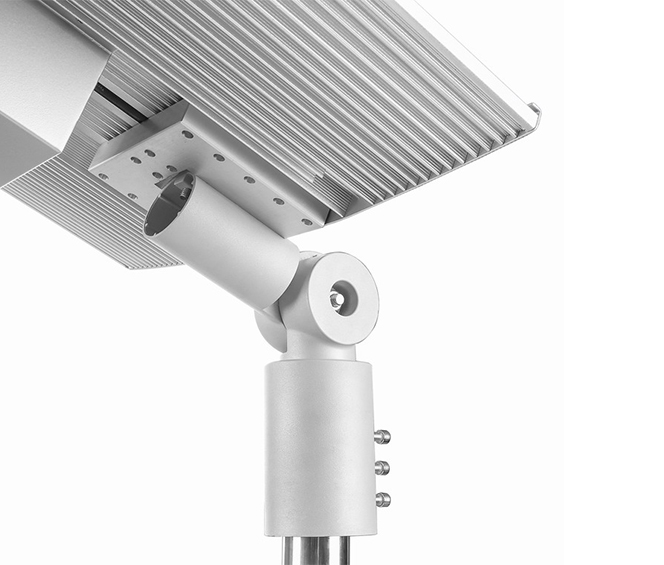

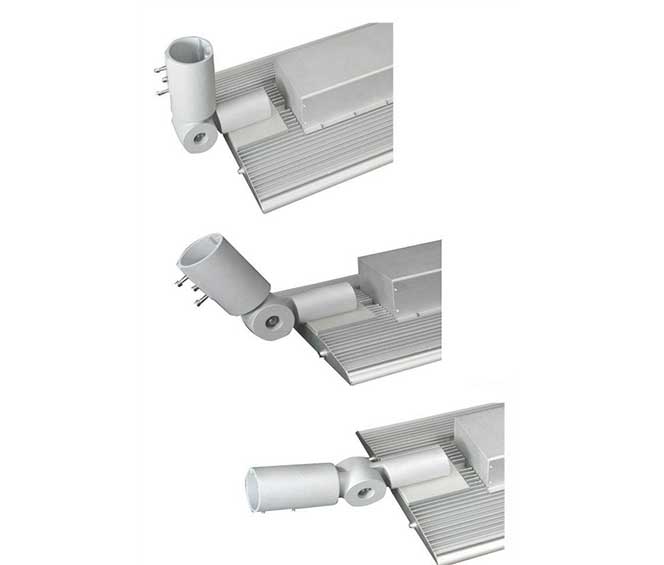

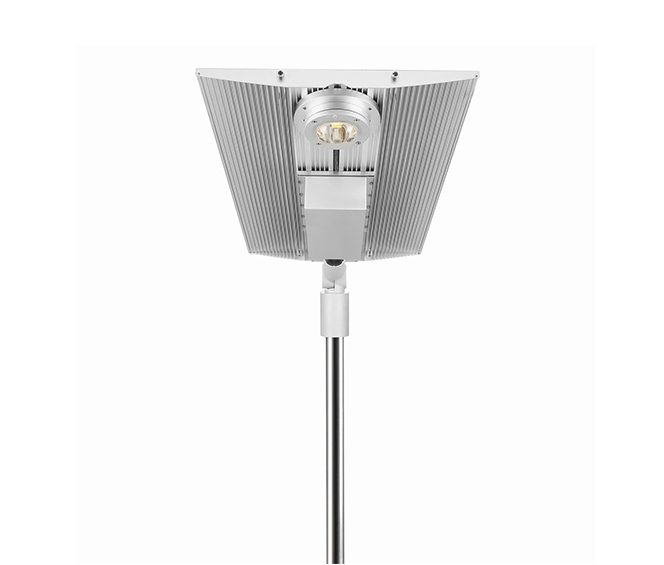

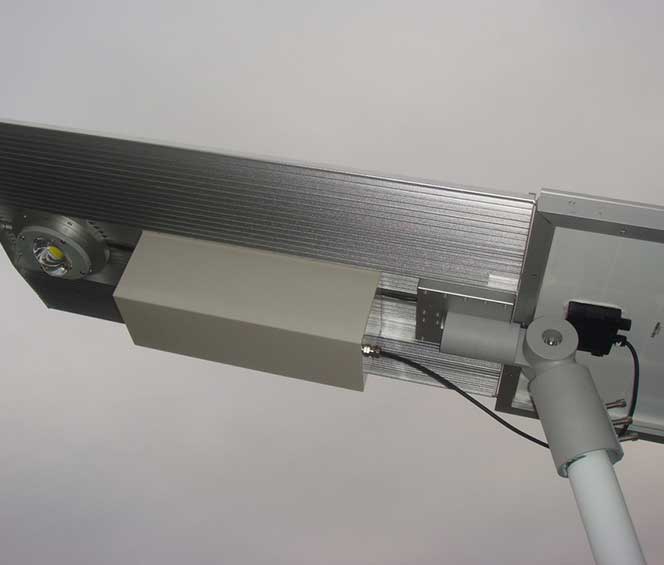

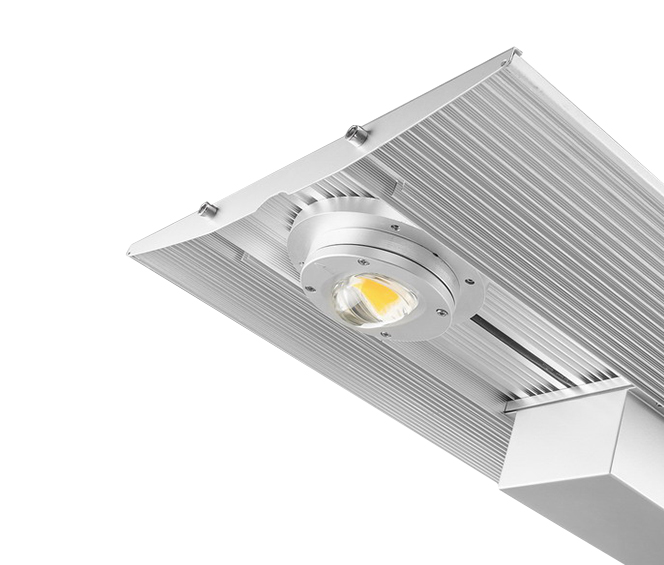

SMGBL-TLD-20w,30w,40w
Integrated solar street led light
Specification
Model No : SMGBL-TLD-20W
LED Power: 20W

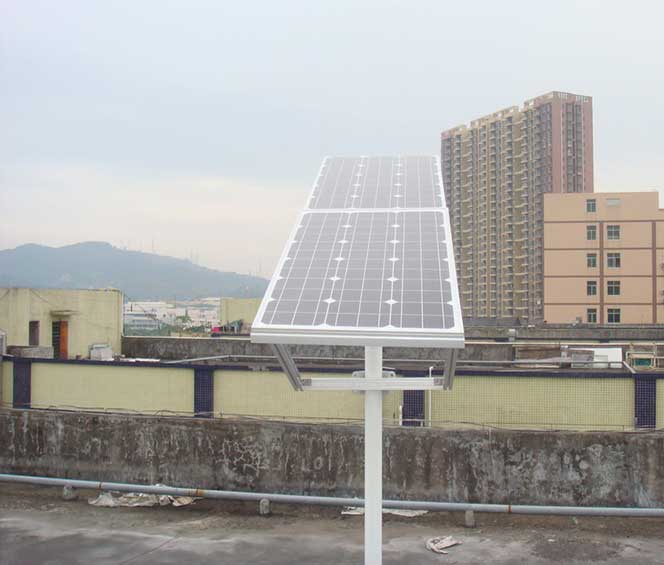

Solar Panel Power: 65W
Solar Panel Material : Mono Crystalline Silicon
Battery Optional: The Ternary Lithium
Battery Capacity : 11.1V，22AH
IP Grade: IP65
Beam angle : 60*120°/80*140°
Net Weight : 18.5KG
LED Lumen : 1800-2000lm
Cover : Toughened Glass
Color Temperature: 2700-7000K
lifespan: 50,000hours
Dimension: L1450*W650*H160mm
Housing Material: Tensile Aluminum
Case Color Available: Silvery
Model No : SMGBL-TLD-30W
LED Power: 30W
Solar Panel Power: 65W
Solar Panel Material : Mono Crystalline Silicon
Battery Optional: The Ternary Lithium
Battery Capacity : 11.1V，30AH
IP Grade: IP65
Beam angle : 60*120°/80*140°
Net Weight : 18.5KG
LED Lumen : 2700-3000lm
Cover : Toughened Glass
Color Temperature: 2700-7000K
lifespan: 50,000hours
Dimension: L810*W500*H120mm
Housing Material: Tensile Aluminum
Case Color Available: Silvery
Model No : SMGBL-TLD-40W
LED Power: 40W
Solar Panel Power: 82W
Solar Panel Material : Mono Crystalline Silicon
Battery Optional: The Ternary Lithium
Battery Capacity : 11.1V，34AH
IP Grade: IP65
Beam angle : 60*120°/80*140°
Net Weight : 22.2KG
LED Lumen : 3600-4000lm
Cover : Toughened Glass
Color Temperature: 2700-7000K
lifespan: 50,000hours
Dimension: L980*W500*H120mm
Housing Material: Tensile Aluminum
Case Color Available: Silvery
Light Mode: 100% brightness for the first 5 hours and 50% brightness for the rest of the night.

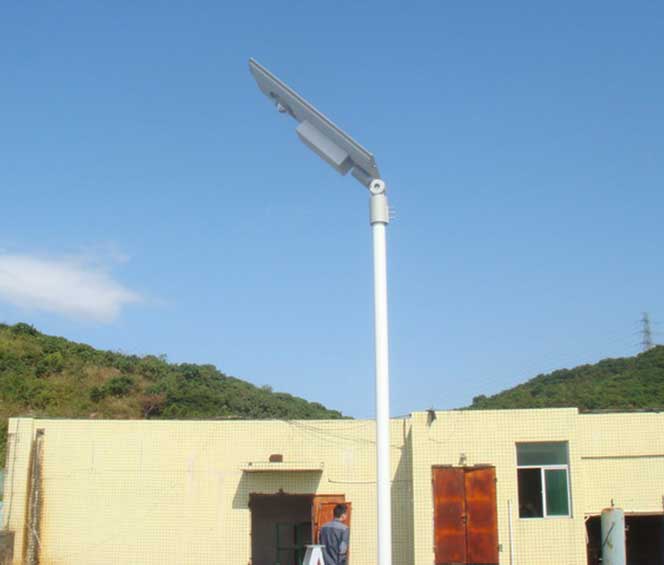

Application
SMGBL-TLD-50w,60w,80w
Integrated solar street led light
Specification
Model No : SMGBL-TLD-50W
LED Power: 50W
Solar Panel Power: 108W
Solar Panel Material : Mono Crystalline Silicon
Battery Optional: The Ternary Lithium
Battery Capacity: 11.1V，48AH
IP Grade: IP65
Beam angle : 60*120°/80*140°
Net Weight : 27.6KG
LED Lumen : 4500-5000lm
Cover : Toughened Glass
Color Temperature: 2700-7000K
lifespan: 50,000hours
Dimension: L1290*W500*H160mm
Housing Material: Tensile Aluminum
Case Color Available: Silvery
Model No : SMGBL-TLD-60W
LED Power: 60W
Solar Panel Power: 135W
Solar Panel Material : Mono Crystalline Silicon
Battery Optional: The Ternary Lithium
Battery Capacity : 22V，34AH
IP Grade: IP65
Beam angle : 60*120°/80*140°
Net Weight : 32.6KG
LED Lumen : 5400-6000lm
Cover : Toughened Glass
Color Temperature: 2700-7000K
lifespan: 50,000hours
Dimension: L1600*W500*H160mm
Housing Material: Tensile Aluminum
Case Color Available: Silvery
Model No : SMGBL-TLD-80W
LED Power: 80W
Solar Panel Power: 165W
Solar Panel Material : Mono Crystalline Silicon
Battery Optional: The Ternary Lithium
Battery Capacity : 22V，40AH
IP Grade: IP65
Beam angle : 60*120°/80*140°
Net Weight : 39KG
LED Lumen : 7200-8000lm
Cover : Toughened Glass
Color Temperature: 2700-7000K
lifespan: 50,000hours
Dimension: L1450*W650*H160mm
Housing Material: Tensile Aluminum
Case Color Available: Silvery
Light Mode: 100% brightness for the first 5 hours and 50% brightness for the rest of the night.
